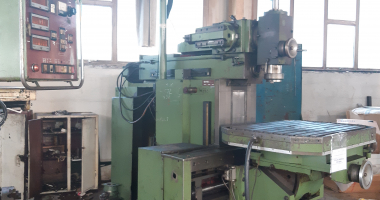

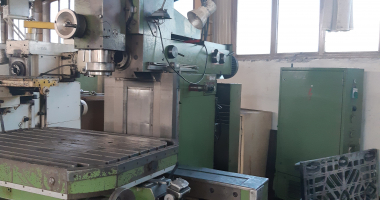

MILLING MACHINE SHW Gbmh Germany UF 31

Part of Auction MILLING MACHINE SHW UF 31 AUCTION - Lot number #1

1.jpg 2.jpg 3.jpg 4.jpg
Current bid:
8.500 €
( 0 bids )
Time left:
Time limit expired
(10/02/2020 09:00)
MILLING MACHINE SHW Gbmh Germany UF 31 DescriptionMILLING MACHINE SHW Gbmh Germany UF 31 DescriptionDescription
Pivot fields:
- Milling head and grinding head: ± 90 °
- Rotation table in horizontal plane: 360 °
- Advances with continuous adjustment (without steps): 5-2000 mm / min.

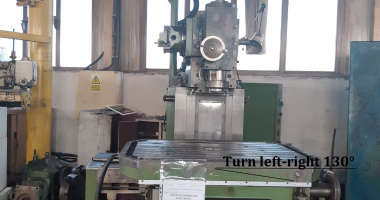

- Left-right tilt: 130 °
- Front-back tilt: 200 °
- Milling spindle: ISA 50
Strokes:
- Headstock: 600 mm
- Horizontal carriage: 850 mm
- Vertical carriage: 625 mm
- Horizontal table: 500 mm
- Spindle sleeve at short milling head: 120 mm
- Spindle sleeve at long milling head: 200 mm
Fast displacement:
- Horizontal 4000 mm/min.
- Vertical 2000 mm/min.
- Main shaft speeds, 18 steps: 36-1800 rpm.
Operating hours: 65000
Dimensions   2600 mm x 2500 mm x 1900 mm (L x W x H)
Weight   4500 kg
Operating voltage   380 V ac / 50Hz
Total power input   13 kW
Item Id #   165
Manufacturer   SHW Gbh Germany
Model / Type   UF 31
Year of manufacture   1976
Machine available from   immediately
Machine condition   in working order
Machine location   105600 Campina, Romania
Info   From Monday 17.02.2020 till Friday 22.02.2020, from 8 am till 14 pm
Date   From Monday 17.02.2020 till Friday 22.02.2020, from 8 am till 14 pm
Delivery terms   FCA Campina
Cost Dismantling & Loading   150,00 €
Payment terms   100% payment prior to collection
Viewing   Viewing by pre-arranged term only
Location   105600 Campina, Romania
