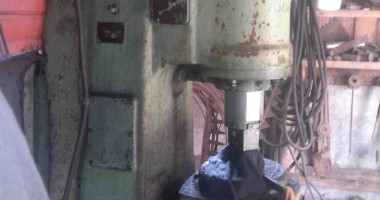

Manufacturer: Stanko

YOM: 1984

Weight of the falling parts: 80 kg

Number of strokes per min: 210

Effective kinetic energy of falling part by stroke: 140 kg/m

Distance from ram axis-to-frame: 300 mm

Anvil dimensions:
-Length: 130 mm
-Width: 63 mm
-Anvil height above the floor: 800 mm

Diameter of working cylinder: 250 mm

Diameter of compressor cylinder: 260 mm

Stroke run: 385 mm

Optimal stamping section of work-piece:
-Square: 60 mm
-Rounded: 80 mm

Overall dimensions:
-Length: 790 mm
-Width: 1566 mm
-Height: 1900 mm

Weight of the hammer with an anvil-block: 3100 kg
