Find Machinery Metalworking Machinery Milling Machines MILLING MACHINE SHW Gbh Germany UF 31

MILLING MACHINE SHW Gbh Germany UF 31

Part of Auction MILLING MACHINE SHW UF 31 AUCTION - Lot number #1

1.jpg 2.jpg 3.jpg 4.jpg
Current bid:
8.500 €
( 0 bids )
Time left:
Time limit expired
(08/01/2020 08:00)
MILLING MACHINE SHW Gbh Germany UF 31 DescriptionMILLING MACHINE SHW Gbh Germany UF 31 DescriptionDescription
Pivot fields:
- Milling head and grinding head: ± 90 °
- Rotation table in horizontal plane: 360 °
- Advances with continuous adjustment (without steps): 5-2000 mm / min.

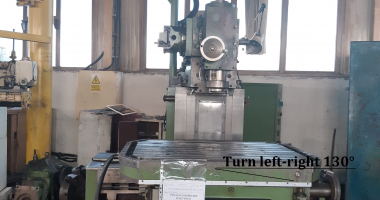

- Left-right tilt: 130 °
- Front-back tilt: 200 °
- Milling spindle: ISA 50
Strokes:
- Headstock: 600 mm
- Horizontal carriage: 850 mm
- Vertical carriage: 625 mm
- Horizontal table: 500 mm
- Spindle sleeve at short milling head: 120 mm
- Spindle sleeve at long milling head: 200 mm
Fast displacement:
- Horizontal 4000 mm/min.
- Vertical 2000 mm/min.
- Main shaft speeds, 18 steps: 36-1800 rpm.
Operating hours: 65000
Dimensions   2600 mm x 2500 mm x 1900 mm (L x W x H)
Weight   4500 kg
Operating voltage   380 V ac / 50Hz
Total power input   13 kW
Item Id #   136
Manufacturer   SHW Gbh Germany
Model / Type   UF 31
Year of manufacture   1976
Machine available from   immediately
Machine condition   in working order
Machine location   105600 Campina, Romania
Info   From Wednesday 15.01.2020 till Thuesday 21.01.2020, from 8.00 am till 14.00 pm
Date   From Wednesday 15.01.2020 till Thuesday 21.01.2020, from 8.00 am till 14.00 pm
Delivery terms   FCA Campina
Cost Dismantling & Loading   150,00 €
Payment terms   100% payment prior to collection
Viewing   Viewing by pre-arranged term only
Location   105600 Campina, Romania
