SINGLE-CRANK PRESS STANKO KV2132

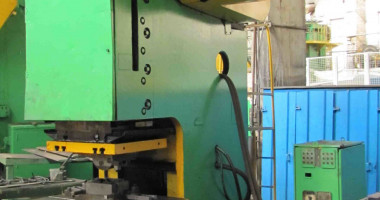

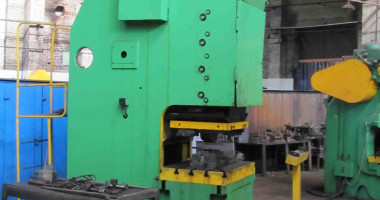

1.jpg 2.jpg 3.jpg
Contact person
MachineSpot® Support
Phone
Email
Call Call Contact Mail Mail Enquiry Print Print Print Used machine watch Used machine watch Watchlist
SINGLE-CRANK PRESS STANKO KV2132 DescriptionSINGLE-CRANK PRESS STANKO KV2132 DescriptionDescription

Manufacturer: Stanko

YOM: 1985

Nominal force: 160ton

Ram stroke: 25…160mm

Number of ram strokes per minute: 71

Shut height: 480mm

Bed to ram adjustment stroke: 120mm

Ram axis to frame distance: 360mm

Bed dimensions: 900 x 1400mm

Ram dimensions: 665 x 560mm

Power required: 19kW

Press dimensions: 2340 x 2100 x 3700mm

Press weight: 13600kg

Item Id #   334
Manufacturer   Stanko
Model / Type   KV2132
Year of manufacture   1985
Machine available from   immediately
Machine condition   good
Machine location   Lithuania
Payment terms   100% payment prior to collection
