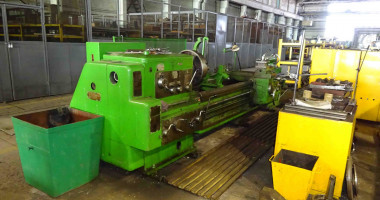

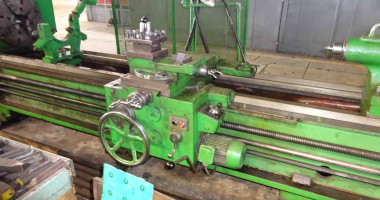

Manufactured by: Ryazan plant (Russia)
Max. work piece length: 1500mm

Max. work piece diameter: 630mm

Max. work piece diameter above support: 350mm

Max. work piece weight: 2000kg

Spindle bore diameter: 65mm

Spindle taper: Morse 5

Spindle speed range: 12,5…1600rpm

Thread range:
– Metric, mm 1…192
– Inch, (thread/inch) 24…0,25
– Module, module 0,5…48
– Pitch, diametral pitch 96…1

Machine dimensions: 3400 x 1800 x 1420mm

Machine weight: 4350kg
