VERTICAL TURNING LATHE SEDIN 1531M

1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg
Contact person
MachineSpot® Support
Phone
+386 (0)2 292 76 99
Email
info@machinespot.com
Call Call Contact Mail Mail Enquiry Print Print Print Used machine watch Used machine watch Watchlist
VERTICAL TURNING LATHE SEDIN 1531M DescriptionVERTICAL TURNING LATHE SEDIN 1531M DescriptionDescription

Manufacturer: Sedin

YOM: 1970

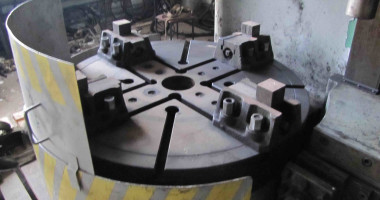

Chuck diameter: 1120mm

Max. work piece diameter: 1250mm

Max. work piece height: 1000mm

Max. work piece weight: 3200kg

Chuck rotation range: 6,3…315rpm

Support possible work angle: 45deg.

Main motor power: 30kW

Voltage: 380V

Frequency: 50Hz

Machine dimensions: 3117 x 3050 x 4140mm

Machine weight: 14200kg

Item Id #   302
Manufacturer   Sedin
Model / Type   1531M
Year of manufacture   1970
Machine available from   immediately
Machine condition   good
Machine location   Lithuania
Payment terms   100% payment prior to collection
