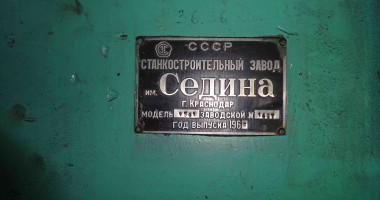

Manufactured by Sedin (Russia)

Year of manufacture 1968

Chuck diameter, mm 1400

Max. work piece diameter, mm 1600

Max. work piece height, mm 1000

Max. work piece weight, kg 5000

Chuck rotation range, rpm 4…200

Support possible work angle, deg. 45

Movement of vertical support, mm:
– Vertically 700
– Horizontally 1000

Main motor power, kW 30

Voltage, V 380

Frequency, Hz 50

Machine dimensions, mm 3380 x 3240 x 4140

Machine weight, kg 17800

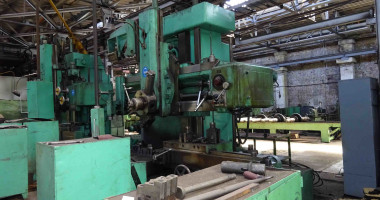

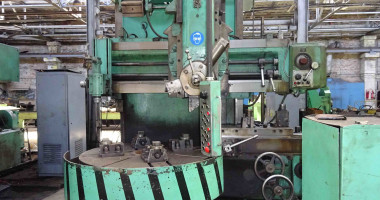

The VTL is very nice condition. Machine is fully complete. It has clean slides and no damages.
