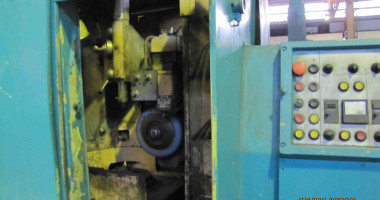

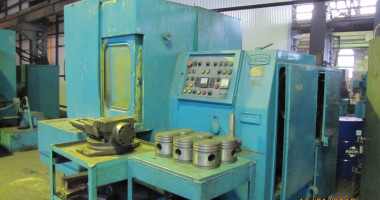

GEAR GRINDING MACHINE STANKO 5A841

1.jpg 2.jpg 3.jpg
Contact person
MachineSpot® Support
Phone
+386 (0)2 292 76 99
Email
info@machinespot.com
Call Call Contact Mail Mail Enquiry Print Print Print Used machine watch Used machine watch Watchlist
GEAR GRINDING MACHINE STANKO 5A841 DescriptionGEAR GRINDING MACHINE STANKO 5A841 DescriptionDescription

Manufacturer: Stanko

YOM: 1985

Work piece diameter: 320mm

Module: 8 mm

Number of teeth: 10-200

Max. face width: 105-150mm

Work piece max. weight with attachment: 150kg

Distance between centers: 150-440mm

Round table diameter: 280mm

Table max. travel: 165mm

Grinding wheel diameter: 260-350 mm

Grinding wheel width: 16-32 mm

Grinding wheel speed: 1920rpm

Grinding speed: 26-35 m/sec

Number of ram double strokes per minute (stepless): 0-280

Machine weight: 8000 kg

Item Id #   318
Manufacturer   Stanko
Model / Type   5A841
Year of manufacture   1985
Machine available from   immediately
Machine condition   good
Machine location   Lithuania
Payment terms   100% payment prior to collection
