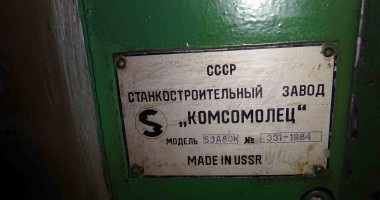

Manufacturer: Stanko

Year of manufacture: 1985

Max. work piece diameter: 800mm

Max. diameter of worm wheel hobbed: 800mm

Max. diameter of spur wheel hobbed: 800mm

Max. diameter of helical wheel with helices hobbed: 500mm

Module: 10

Table diameter: 800mm

Min. number of teeth hobbed: 12

Distance between table and cutter axes: 80…500mm

Distance between table surface and hob axes: 195…595mm

Max. dimensions of hob mounted: 200 x 200mm

Max. vertical travel of hob slide: 400mm

Taper of hole in hob slide (Morse): 5

Max. hob axial travel: 100mm

Rotation frequency of hob spindle: 40…405rpm

Machine overall dimensions: 2897 x 1810 x 2250mm

Machine weight: 10600kg
